Detailed Product Description
| Max. Torque: |
125kN.m |
Max. Drilling Diameter: |
1300mm |
| Max. Drilling Depth: |
37m/43m |
Speed Of Rotation: |
8~30 Rpm |
| Max. Crowd Pressure: |
100 KN |
Main Winch Line Speed: |
78 M/min |
| Stroke(crowd System): |
3200 Mm |
Operating Height: |
14980 Mm |
| Operating Width: |
3000 Mm |
Overall Weight: |
35 T |
| Engine Model: |
Cummins QSB7 |
Rated Power: |
124kW/ 2050rpm |
| Displacement: |
6.7L |
| High Light: |
borehole drilling machine
,
bored pile equipment
|

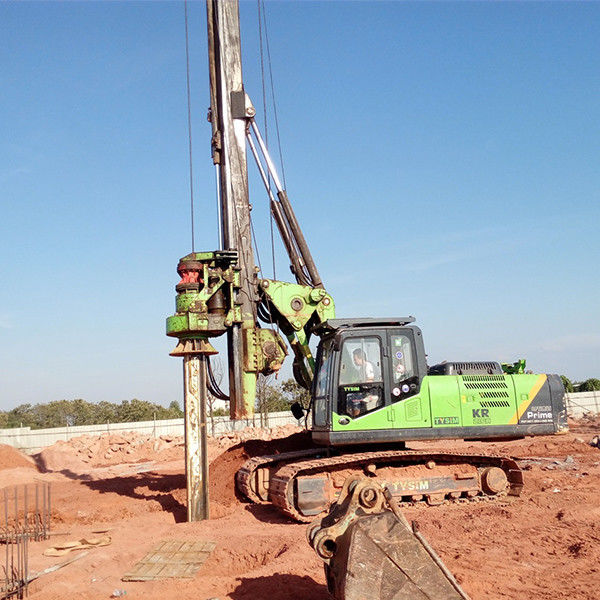

110KN Main Winch Pull Force KR125A Rotary Piling Rig for 37m Interlocking Kelly Bar Bored Piles Rig
Technical Specification
| KR125A rotary drilling rig |
| Torque |
125 kN.m |
| Max. diameter |
1300 mm |
| Max. drilling depth |
37 m(standard)/43 m(optional) |
| Speed of rotation |
8~30 rpm |
| Max. crowd pressure |
100 kN |
| Max. crowd pull |
150 kN |
| Main winch line pull |
110 kN |
| Main winch line speed |
78 m/min |
| Auxiliary winch line pull |
60 kN |
| Auxiliary winch line speed |
60 m/min |
| Stroke(crowd system) |
3200 mm |
| Mast inclination(lateral) |
±3° |
| Mast inclination(forward) |
3° |
| Max. operating pressure |
34.3 MPa |
| Pilot pressure |
3.9 MPa |
| Travel speed |
2.8 km/h |
| Traction force |
204kN |
| Operating height |
15350 mm |
| Operating width |
2990 mm |
| Transport height |
3500 mm |
| Transport width |
2990 mm |
| Transport length |
13970 mm |
| Overall weight |
35 t |
| Engine |
| Model |
Cummins B5.9-C |
| Cylinder number*diameter*Stroke(mm) |
6*102*120 |
| Displacement |
5.9 |
| Rated Power(kW/rpm) |
112/1950 |
| Max. Torque(N.m/rmp) |
614/1500 |
| Kelly Bar |
| Type |
Interlocking |
Friction |
| Section*length |
4*10000(standard) |
5*9500(optional) |
| Depth |
37m |
45m |
1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice
Type: New & Used
Brand: CAT, JCM, SINOMACH, SANY, XCMG and other
2. Hydraulic Parts-----World Famous Brands
Gearbox Reducer: Imported REXROTH
Main Pump & Valve: Imported KAWASAKI (Japan)
Hose: Imported
3. Structure Parts-----Professional Structure Parts Supplier for XCMG
Company introduction
TYSIM machinery focuses on the research,development and manufacture of the kind of the pile working enginerring machiney,it’s the unique company that focuses on developing small and medium-sized rotary drilling rig applying for civil enginerring,now have obtained more than 40 patents of pile working enginerring machiney.The original KP size Pile Breaker(also named break pile machine) of company in China,realize the efficiently pile cutting on a large scale,change the history that field of pile cutting inland rely on the workers and no professional equipments.This production obtained 11 core patents,among them 1 invention patent,they have been exported to Amercian,Brazil,Australia,Vietman,Indonesia and many other countries.
KR size small and medium-sized rotary drilling rig in many fields of metro,viaduct,houses win the praise of all the customers for the construction result,it will be the low cost and high efficient pile working equipments in operation field of our country’s new urbanizational construction. With the goal “be the reliable pile working proficient,fabricate the trade leading outstanding productions”,we recruit excellent talents constantly,create cause terrace for the win-win situation between staffs and company.We stick to the core concept“concentration,creative,value”concentrate on research and development in the pile basical construction field,rely on the working style of“pay attentions to details,keep improving,against the tardiness, finish daily duty”make great efforts to realize the vision of “become the pacemaker of small and medium-sized pile working machinery”.
